XMS24s8-DPower Amplifier
- 8ch in 2U with built-in DSP and Dante
- Total output power 1200W per 4ch
- Max output power 600W/ch at 4,8Ω when power sharing
- Dante interface sampling frequency rate up to 96 kHz
XMS24s8Power Amplifier
- 8ch in 2U with built-in DSP
- Total output power 1200W per 4ch
- Max output power 600W/ch at 4,8Ω when power sharing
XMS12s8-DPower Amplifier
- 8ch in 2U with built-in DSP and Dante
- Total output power 600W per 4ch
- Max output power 300W/ch at 4,8Ω when power sharing
- Dante interface sampling frequency rate up to 96 kHz

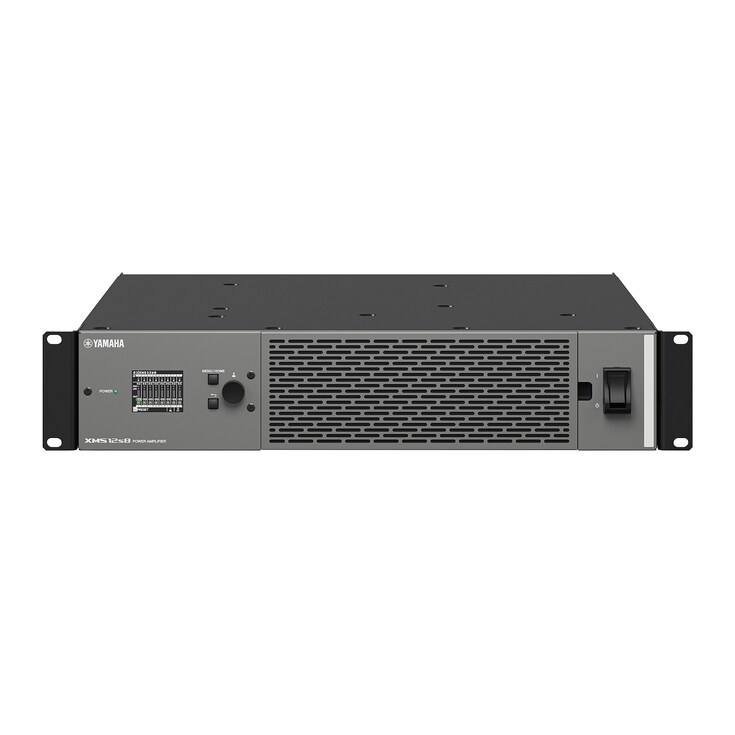

XMS12s8Power Amplifier
- 8ch in 2U with built-in DSP
- Total output power 600W per 4ch
- Max output power 300W/ch at 4,8Ω when power sharing

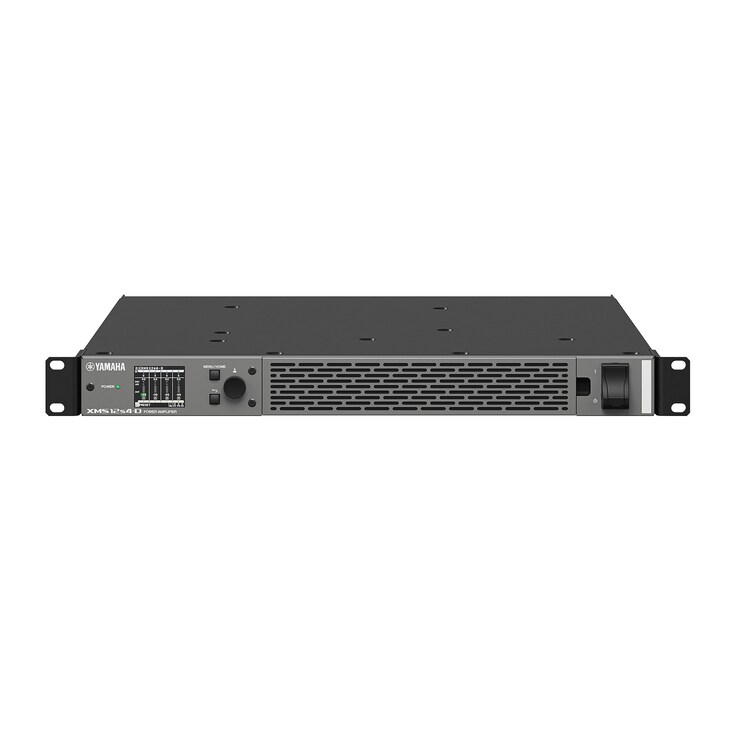

XMS12s4-DPower Amplifier
- 4ch in 1U with built-in DSP and Dante
- Total output power 1200W
- Max output power 600W/ch at 4,8Ω when power sharing
- Dante interface sampling frequency rate up to 96 kHz

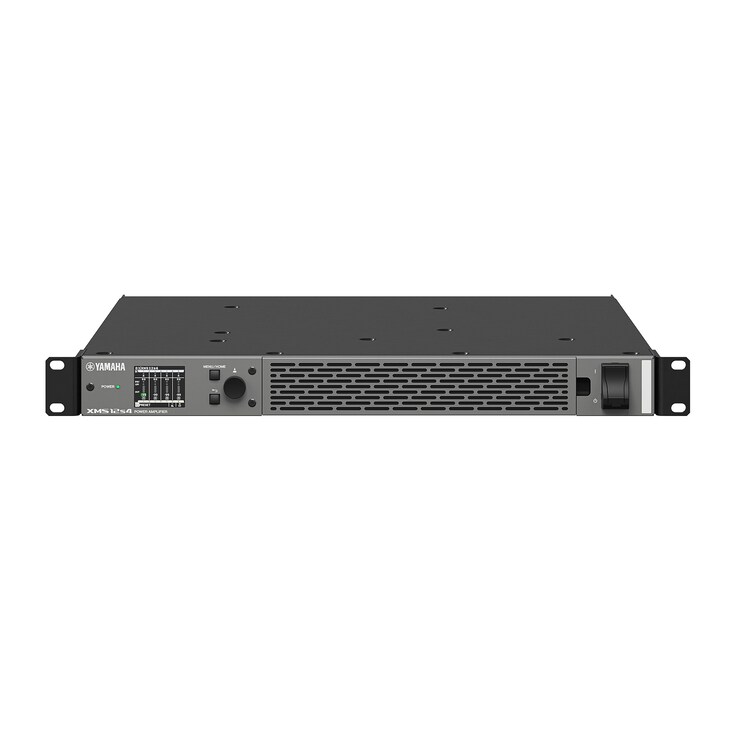

XMS12s4Power Amplifier
- 4ch in 1U with built-in DSP
- Total output power 1200W
- Max output power 600W/ch at 4,8Ω when power sharing
XMS06s4-DPower Amplifier
- 4ch in 1U with built-in DSP and Dante
- Total output power 600W
- Max output power 300W/ch at 4,8Ω when power sharing
- Dante interface sampling frequency rate up to 96 kHz
XMS06s4Power Amplifier
- 4ch in 1U with built-in DSP
- Total output power 600W
- Max output power 300W/ch at 4,8Ω when power sharing
Intelligent Power, Designed to Scale
The XMS Series is a line of intelligent power amplifiers for installed sound systems, combining flexible power sharing with on‑board DSP. Designed for applications ranging from simple audio systems to complex, multi‑zone installations, XMS Series amplifiers are part of Yamaha’s Commercial Installation Solutions (CIS) Ecosystem, and can be used together with DME Series processors for scalable system design. ProVisionaire Design allows detailed configuration of amplifier parameters, offering broad support for audio system design through a streamlined, efficient workflow. With eight models offering a choice of analog or Dante inputs, multiple output power options, and 4‑channel or 8‑channel configurations, the XMS Series gives systems designers the flexibiity to choose the right amplifier for their requirements.
Commercial Installation Solutions Ecosystem
Features
Power Amplifiers Optimized for Distributed Audio Systems
XMS Series amplifiers offer a unique combination of power sharing and flexible routing for more efficient signal distribution in distributed audio systems. Power can be shared across groups of four output channels, allowing efficient use of available amplifier resources. ProVisionaire Design can be used to configure power sharing automatically based on the selected Yamaha speakers, reducing manual calculations and helping to ensure that power to each output channel is allocated appropriately. What's more, the routing function allows audio signals to be routed as needed within each four-channel group, making it easy to distribute the same source to multiple zones.
-

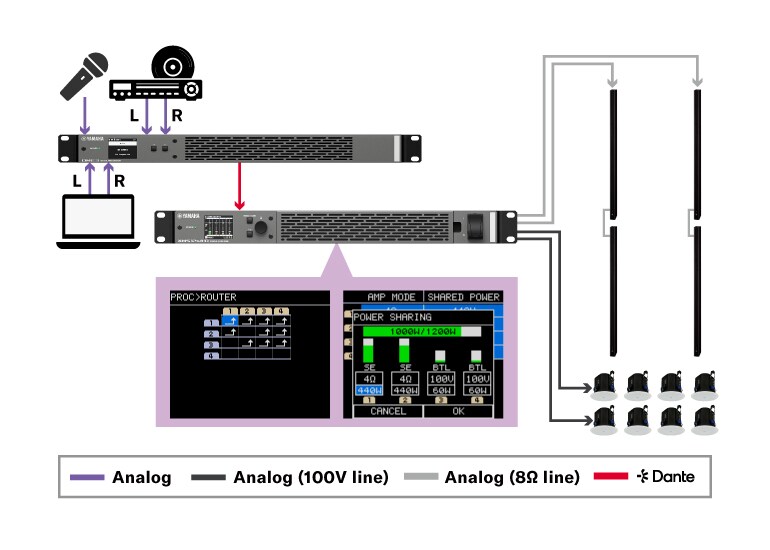

Presentation & distributed system
-

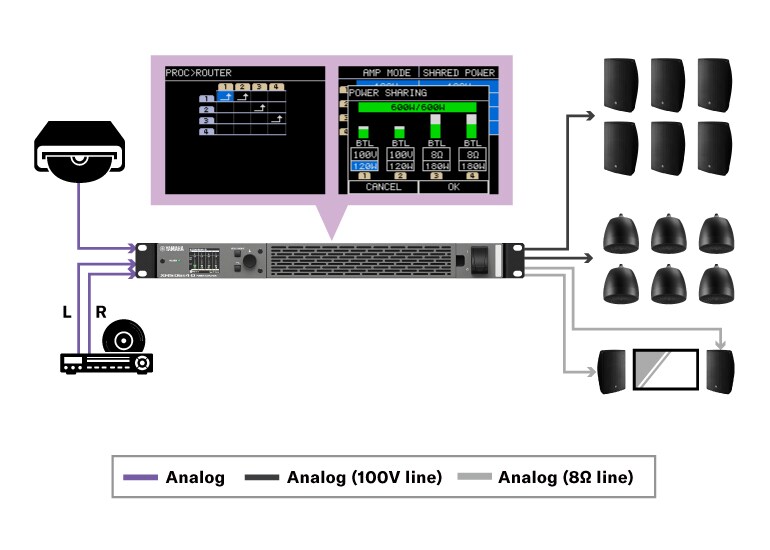

Background music system
Speaker presets tuned for sound quality and reliability
XMS amplifiers include dedicated presets for Yamaha speakers that go beyond EQ settings, incorporating optimized limiter settings to help prevent damage from excessive power output. Each preset has been carefully tuned to balance sound quality with reliability, promoting consistent performance and helping protect speakers over time.
-

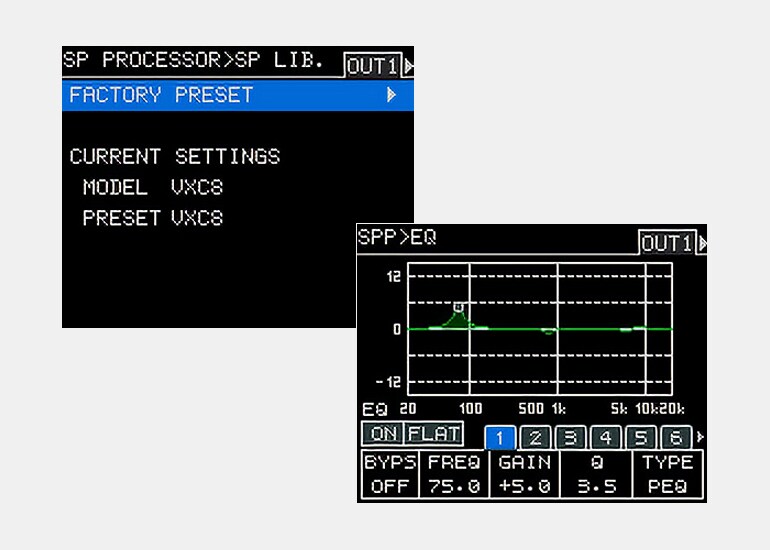

Select from Front Panel
-

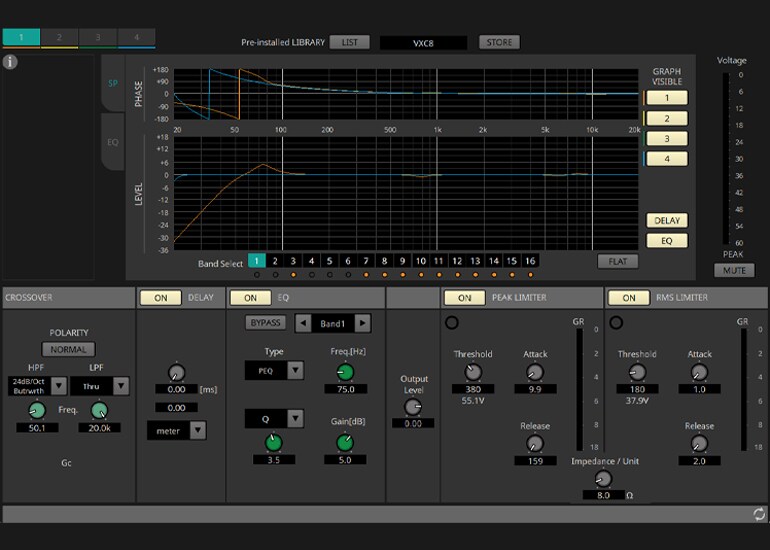

Select within ProVisionaire Design
Streamline system design with ProVisionaire software
Yamaha’s ProVisionaire Design is a Windows-based application for precise, efficient audio system setup, making system design more streamlined and intuitive when using compatible Yamaha products. It enables in-depth configuration of XMS amplifiers and can also be used with the Conductor component on DME5/DME3 processors to easily configure an entire system, helping simplify workflow, accelerate setup, and improve consistency.

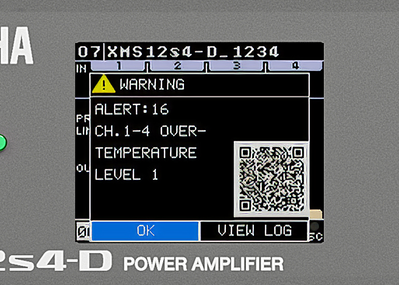

Front-panel control for smooth operation on-site
Easy on-site operation is essential for the smooth commissioning and maintenance of installed sound systems. XMS Series amplifiers feature a full-color front-panel LCD that allows installation personnel to check system status and adjust key parameters directly, without the need for a PC, making setup, verification, and tuning a smooth process. In the event of a problem, the LCD displays an alert together with a QR code linking to a dedicated website describing the required corrective measures. This installer-friendly interface facilitates rapid, efficient response on site, streamlining troubleshooting and helping to reduce downtime during installation and service.
